Liquidations & Factors |

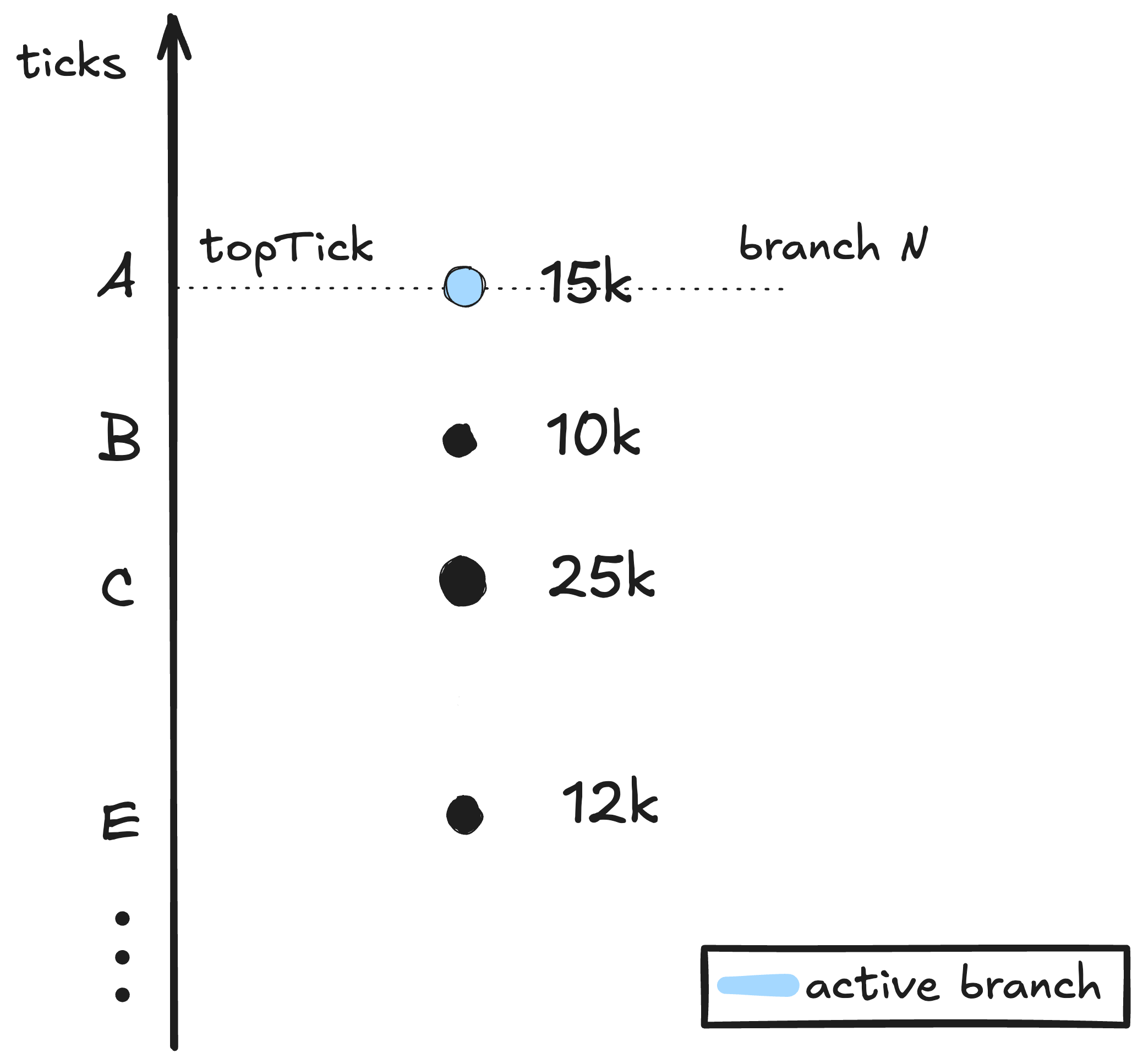

Let’s say we have 4 users opening debt positions on 4 different ticks on the ETH / USDC vault, and let’s assume 1 ETH = 2500 USDC.

Alice: 15k debt
Bob: 10k debt
Charlie: 25k debt
Eve: 12k debt

Important to note is that these examples will have one user per tick for simplicity in visuals, although every tick can have multiple positions in it. Fluid never works with individual positions during liquidations, but rather with tick data, which we will also do.

So we have an active branch with active ticks and no liquidation has ever gone through so far.

Now imagine price starts to drop and liquidations start from topTick. In this case, it only contains Alice’s position.

Every liquidation iteration will ask how much debt should be liquidated from the current tick, so that after debt / collateral composition moves to exactly one tick below.

So, in our case, the first liquidation will ask how much debt should be liquidated from tick A so that collateral debt composition of that tick moves down to tick B. Let’s call that x, so the formula would be roughly:

(debt - x) / (collateral - x * collateralPerDebt) = ratioB

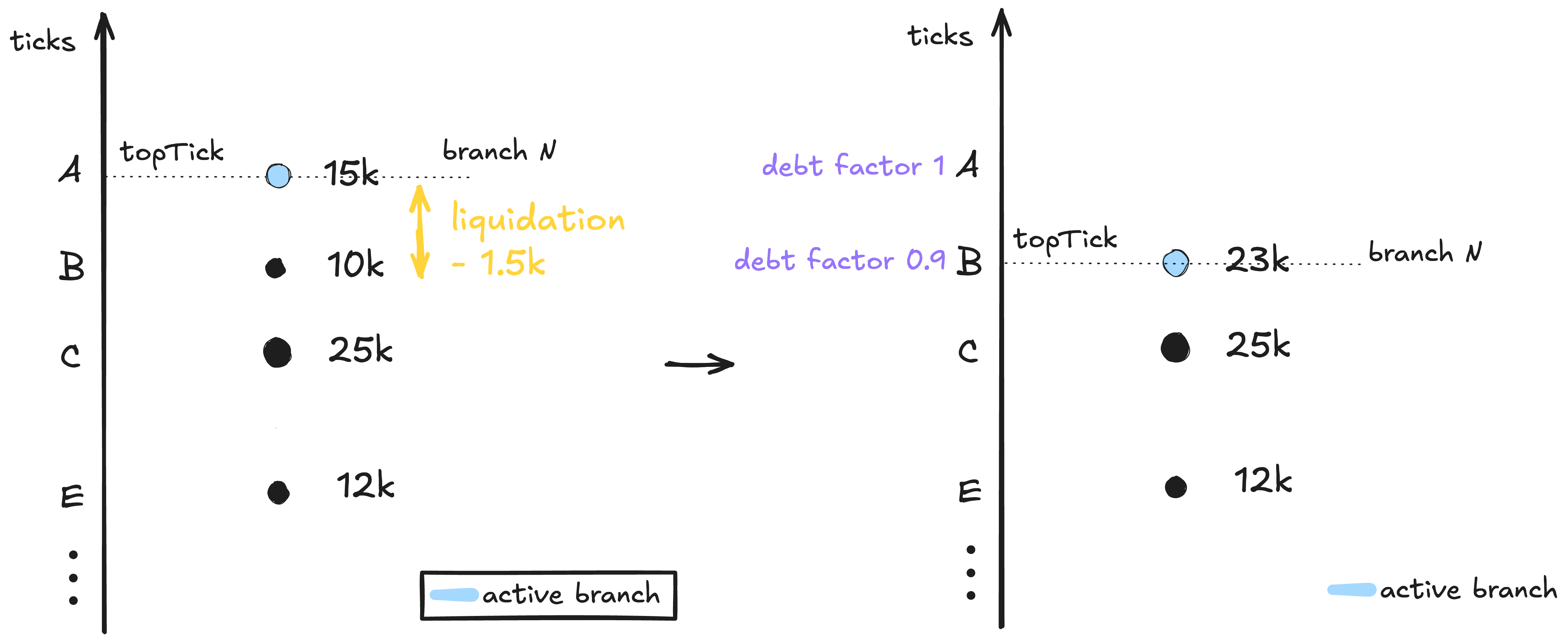

Suppose that moving from tick A to B, liquidator has to liquidate ~1500 USDC. For this, liquidator will also get collateral with bonus, so at the end debt / collateral ratio sits exactly at B.

Let’s analyze the image above as a few important steps happened here.

First, we can see that debt at tick A gets lowered by 1.5k, which is the liquidation amount, and that the rest of 13.5k gets carried on to tick B, which has final 23.5k debt.

If we are about to fetch any position from A, in this case only Alice’s position, her tick would be at B, not A anymore!

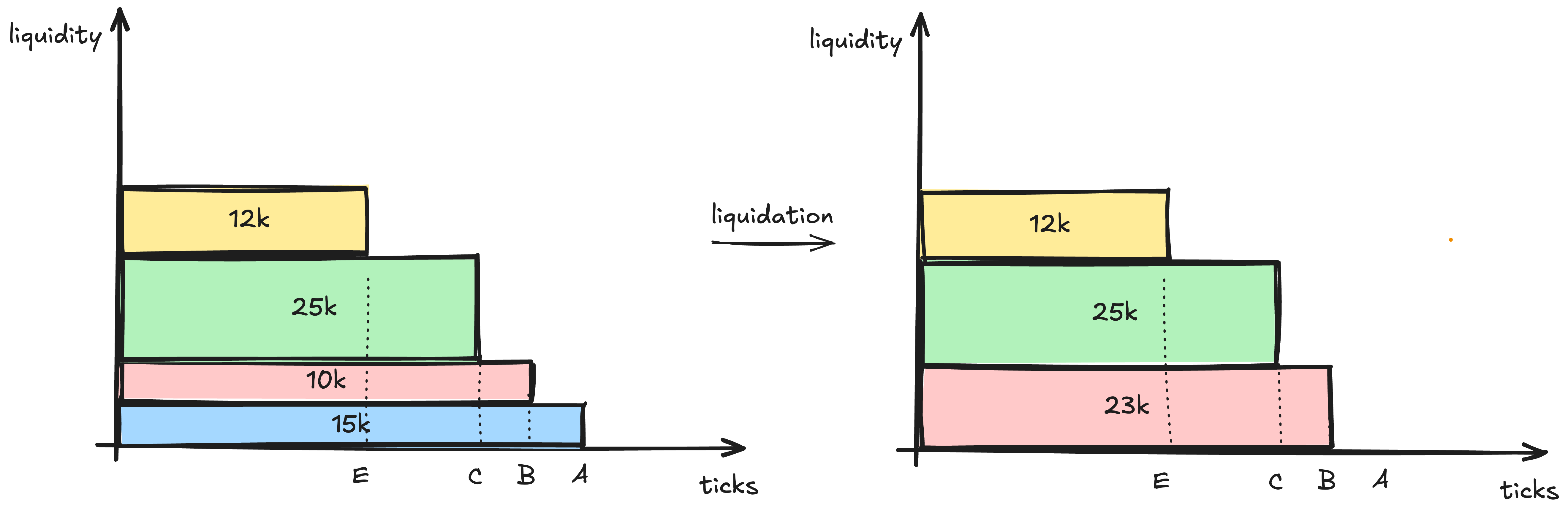

On the image below, we can see one more alternative view of how this debt moving looks:

Now there is one more thing left to clarify. On the first image, we also showed something called debt factor, which moved from 1 to 0.9.

Debt factors allow us to track where liquidation starts and ends for some branch, and give us the ability to later fetch users and recalculate debt, regardless of their initial tick, how many liquidations their position underwent, and at which points.

Every branch starts with debt factor of 1, meaning no liquidations happened yet.

As soon as some tick gets in touch with liquidation, we immediately store the current branch factor. I will give some snippet from future code just to get the idea better:

// Updating tickData on storage with removing debt & adding connection to branch
tickData[currentData_.tick] =
    1 | // set tick as liquidated
    (temp2_ & 0x1fffffe) | // set same total tick ids
    (branch_.id << 26) | // branch id where this tick got liquidated
    (branch_.debtFactor << 56);

In our example, Alice’s position is the first one, so she starts from branch factor of 1. This means that tickData[A] will immediately be marked as liquidated and branch factor of 1 will be stored for tick A.

Calculating debt factor after one liquidation iteration is rather straightforward. We just need the initial factor and which percentage of tick debt is liquidated:

newFactor = oldFactor * remainingDebt / previousDebt
newFactor = 1 * 13500 / 15000
newFactor = 0.9

If we just stopped liquidation here, our current branch would have final debt factor of 0.9 and retrieving Alice’s debt would show us that 10% of the position got liquidated:

initialDebt * endBranchFactor / tickData[A].debtFactor
15000 * 0.9 / 1 = 13500

But let’s not stop liquidation here, and assume the liquidator has more debt to liquidate, so we keep running liquidation loops.

Next in line is tick B with Bob’s position and leftover debt from Alice’s position with starting debt factor of 0.9.

We again ask the question: what is the amount of debt needed so we move to ratio C?

Suppose the answer is 3916.667 USDC, which would make remaining debt:

23500 - 3916.667 = 19583.333

And new debt factor:

0.9 * 19583.333 / 23500 = 0.75

Again, if we stop now, Bob’s position debt would be retrieved as:

10000 * 0.75 / 0.9 = 8333.333

We can’t just multiply by the latest debt factor of 0.75, as Bob entered the liquidation loop at 0.9, not at 1 like Alice from the beginning.

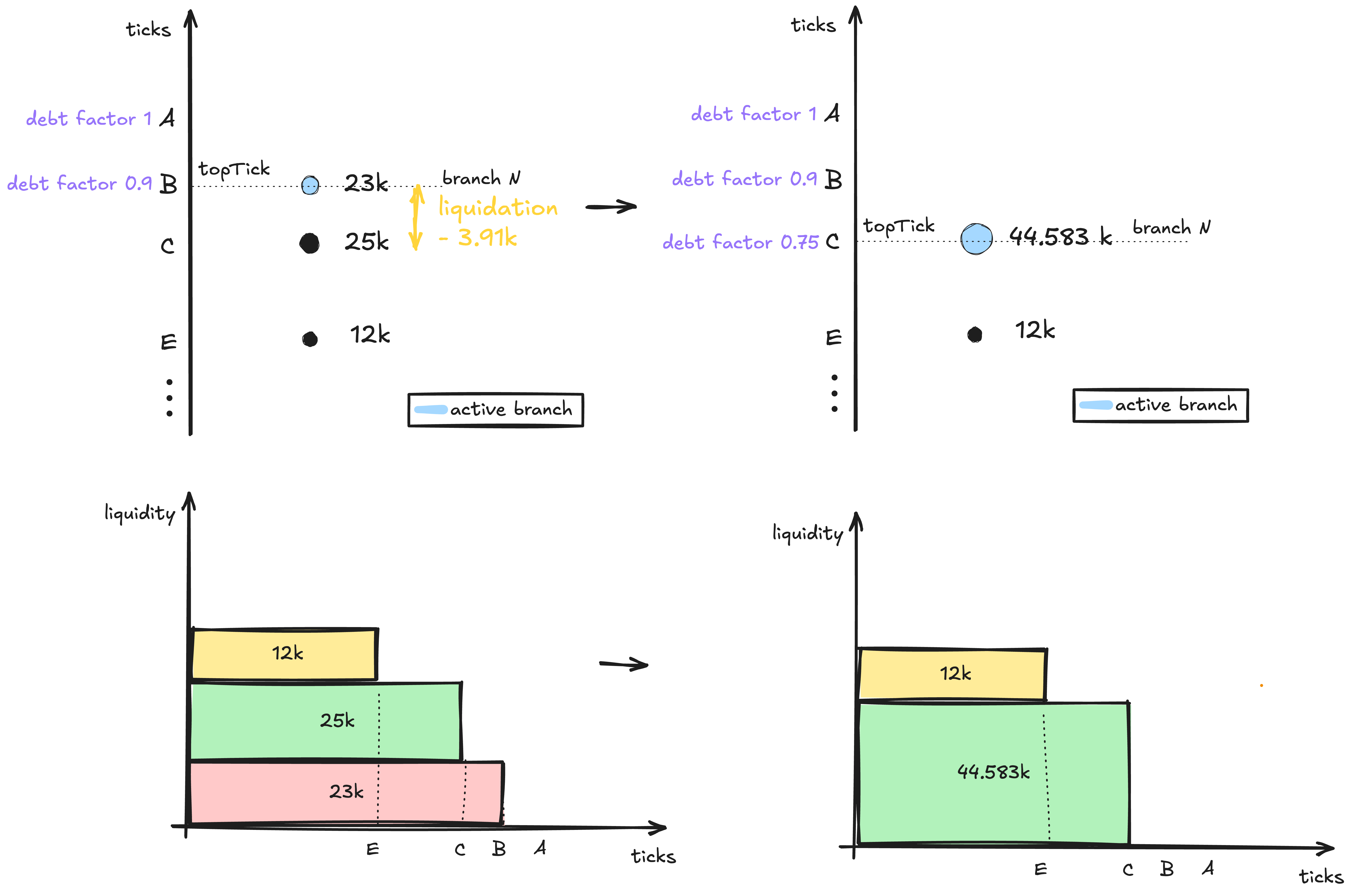

This second iteration can be represented visually in the image below:

Finally, lets run one more iteration of liquidation.

This time, we again choose the next tick. Note that we are only choosing active ticks with debt, which is in our case tick E.

Suppose that the liquidator is only left with 8916.667 USDC after running the previous liquidation, and that moving to E from C will require more debt. If this happens, we end up somewhere between 2 ticks. The mechanism from which we retrieve this point is called partials.

So suppose we have some ratio R at the perfect tick, and ratio R-1, and liquidation stops at point X between these 2 ratios.

ratio(R)

     ● R
     │
     │
     X  ← exact liquidation frontier
     │
     │
     ● R-1

ratio(R-1)

Fluid would store minima tick as:

minimaTick = (R-1) + ((R) - (R-1)) * partials

If partials is 0.5, we would be exactly at half. If it is 0.8, we would be closer to R. If it is 0.2, we would be closer to R-1.

In our example, let’s call this point D.

Now let’s go back to debt factors and finish this iteration.

Remaining debt will be:

44583.333 - 8916.667 = 35666.666

and debt factor:

0.75 * 35666.666 / 44583.333 = 0.6

So final accumulated debt factor from the branch after running liquidation loops is 0.6:

1 * 0.9 * 0.83333 * 0.8 = 0.6

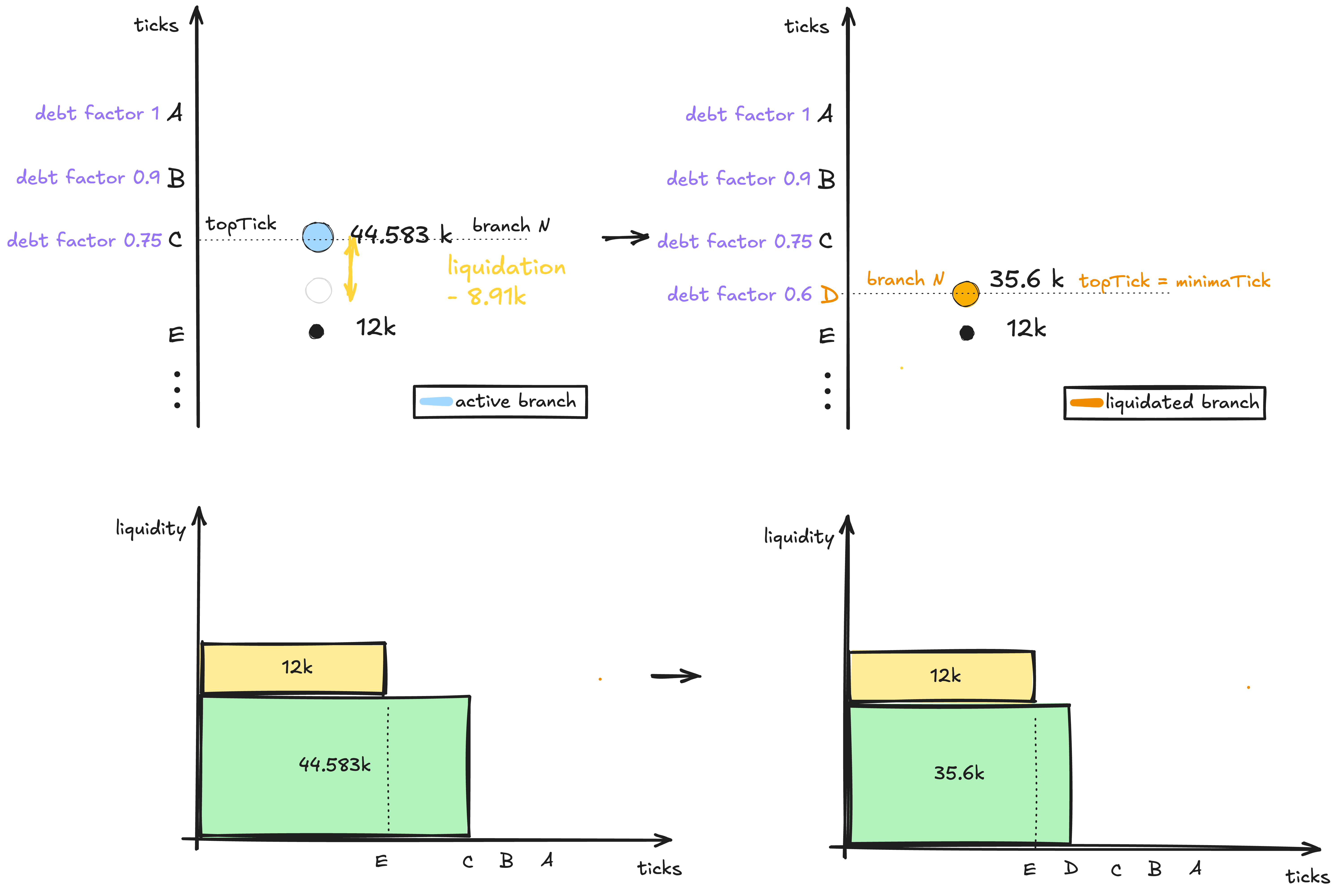

Visualized, this would look like the image below:

We end up at point D, which would be the new minimaTick containing all leftover debt.

All ticks above would be marked as liquidated and will store debt factor depending on when they joined liquidation.

A will store debt factor of 1.
B will store debt factor of 0.9.
C will store debt factor of 0.75.

And branch N will store debt factor of 0.6 with minima tick at point D.

If we want to see total amount liquidated and retrieve user positions after liquidation, ignoring Eve position which liquidation did not touch:

Positions before:
-----------------
Alice:      15k debt
Bob:        10k debt
Charlie:    25k debt
Total debt: 50k debt

Positions after:
----------------
Alice:      15k * 0.6 / 1    = 9k
Bob:        10k * 0.6 / 0.9  = 6.6k
Charlie:    25k * 0.6 / 0.75 = 20k
Total debt:                  = 35.666k

Liquidated = 14.33k

Merging branches and connection factors

We liquidated the previous branch and finished at minima D, but now let’s imagine the price goes up again and new users are entering above minimaTick.

Suppose we have Felix with 18k debt that comes above minimaTick at some tick F (highest tick so far), and Grace with 10k debt that got placed at the previously liquidated tick C.

For these users, a new branch N+1 will be generated on top of the previous one (branch N), where N will be placed as the base branch. The new topTick will be F.

Let’s quickly recall what happens when we assign tick C to Grace, which was already covered here in case 3.2 when the existing tick already got liquidated.

Because tick C got liquidated from the previous branch, we don’t want to put Grace’s position there, but rather initialize a new active epoch and snapshot the previous liquidated state to history.

In this case, this snapshot for C will contain data from the previous liquidation, which will contain branch N for the liquidated branch and debt factor of 0.9.

Now when we decide to run new liquidations later, Grace will have a fresh new state with debt factor of 1 for its latest tick generation.

Okay, the price went up and we got new users. Now, as before, let’s assume the price suddenly goes down and we want to run a new liquidation loop.

We are starting from the new topTick containing Felix’s position, and we again ask: what is the amount of debt X that needs to be liquidated so that we reach the next active tick with debt, which is in this case C?

Suppose the answer is 3.6k, meaning:

remainingDebt = 18k - 3.6k = 14.4k
newFactor = oldFactor * remainingDebt / previousDebt
newFactor = 1 * 14.4 / 18 = 0.8

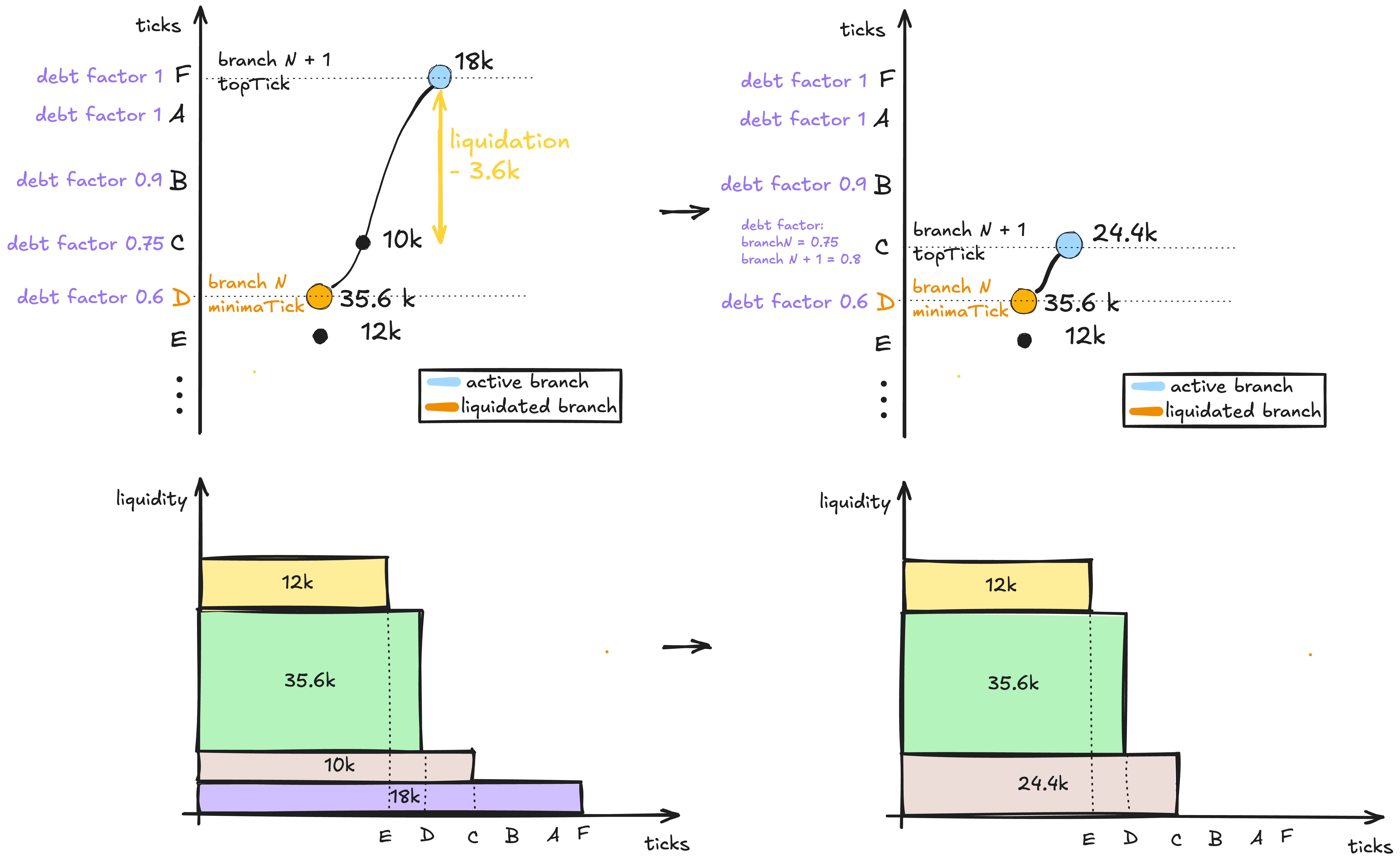

This can be shown visually:

Note that at this point we touched tick C with entry factor of 0.8, but Charlie’s tick data still lives in history with his 0.75 debt factor, so we will be able to retrieve both positions later.

So we have in storage:

tick C generation G
    Branch N
    debt factor 0.75
    historical (stored in tickId struct)
    Charlie position

tick C generation G + 1
    Branch N + 1
    debt factor 0.8
    current latest (stored in tickData struct)
    Grace position

Now, let’s say the liquidator still has debt to liquidate, so we run the next liquidation loop.

We look for the next liquidation point. We have 1 active tick sitting at E with debt 12k, but we also have the base branch minima tick sitting on a riskier point. We want to pick the riskiest point. We ask again, what debt should be liquidated so we move to tick D (note that D is not the perfect tick from before, but rather has some partials, for simplicity we will still call it a tick).

Let’s say that answer is 9.15k, meaning:

remainingDebt = 24.4k - 9.15k = 15.25k
newFactor = oldFactor * remainingDebt / previousDebt
newFactor = 0.8 * 15.25 / 24.4 = 0.5

If we would retrieve positions from branch N+1 now, we would get:

Positions before:
-----------------
Felix:      18k debt
Grace:      10k debt
Total debt: 28k debt

Positions after:
----------------
Felix:      18k * 0.5 / 1    = 9k
Grace:      10k * 0.5 / 0.8  = 6.25k
Total debt:                  = 15.25k
Liquidated = 12.75k

That’s all clear, we liquidated enough debt to move to D, but what happens when we touch D?

This moment when we touch the base branch minima tick during liquidation is called a merge event, where we merge child branch N+1 with its parent (base) branch N.

The only catch here is that branch N has a factor of 0.6 and branch N+1 has a factor of 0.5.

So if branch N+1 is gone as merged, what happens to positions from the N+1 branch? Can we just start using the base branch debt factor of 0.6?

Let’s see:

Felix:      18k * 0.6 / 1    = 10.8k
Grace:      10k * 0.6 / 0.8  = 7.5k

Well, this differs from above, where we know that Felix is left with 9k and Grace with 6.25k.

To solve this problem, we want to connect positions from the child branch with the base branch debt factor using something called connection factor.

Connection factor is calculated as:

connectionFactor = baseBranchFactor / childBranchFactor

For our case that would be:

connectionFactor = 0.6 / 0.5
connectionFactor = 1.2

So if we take the previous calculations:

Felix:      18k * 0.5 / 1    = 9k
Grace:      10k * 0.5 / 0.8  = 6.25k

and multiply by connectionFactor / connectionFactor, we would get:

Felix:
18k * 0.5 * 0.6
---------------
     0.5           18k * 0.6
--------------- = ----------- = 9k
    1 * 0.6           1.2
  -----------
      0.5

Grace:
10k * 0.6 / (0.8 * 1.2) = 6.25k

So if we store the connection factor for the child branch, we can still accurately retrieve all positions from that branch. And that’s what Fluid stores in branch data as well:

// ...
/// Next 50 bits => 116-165 => Connection/adjustment debt factor of this branch with the next branch.
// ...
mapping(uint256 => uint256) internal branchData;

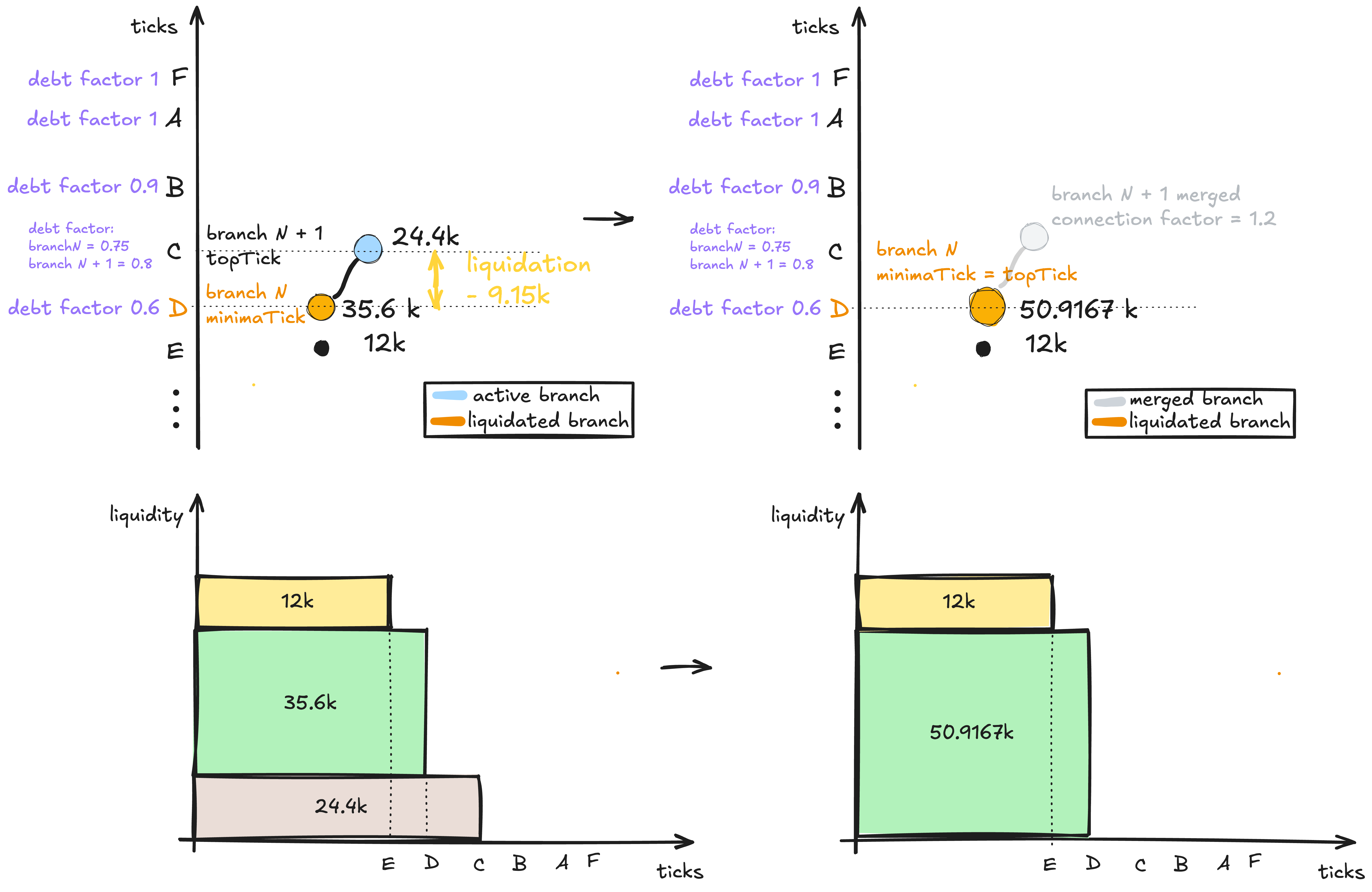

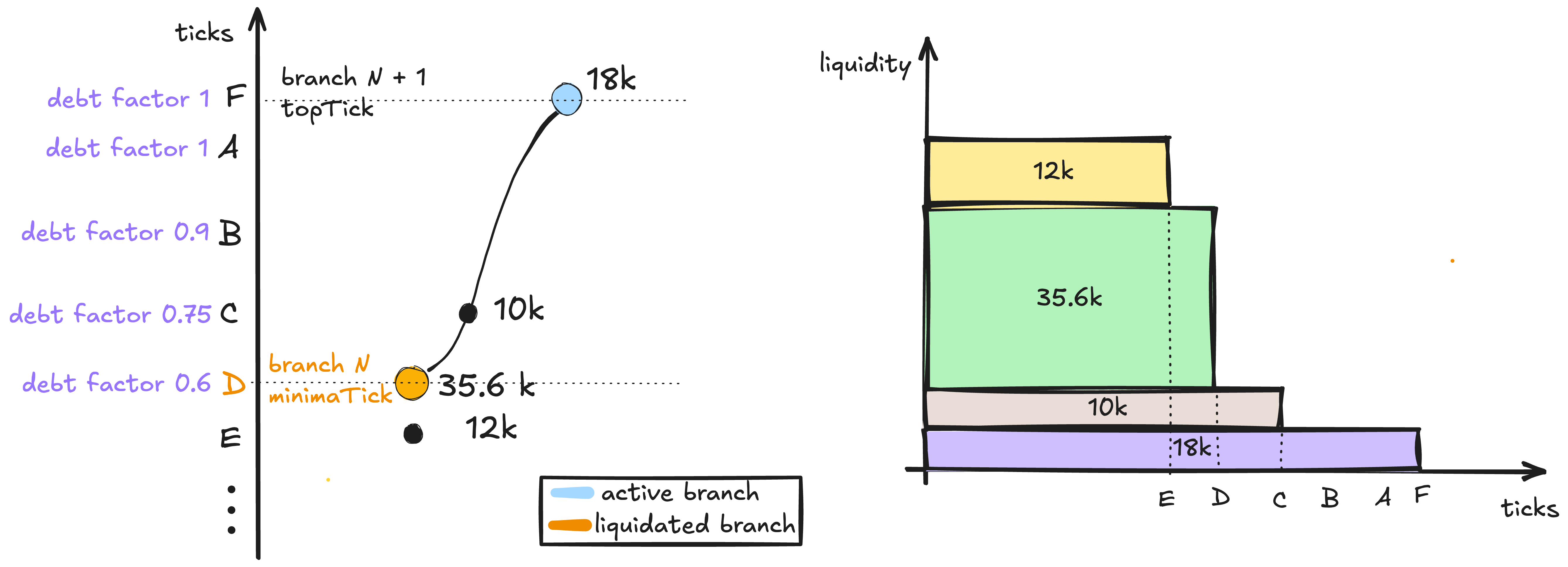

Going back to our example, we can visually represent the new state:

Now, branch N is again the latest liquidation frontier, with minimaTick being topTick again. So let’s say the liquidator still has some debt to liquidate, so we will run one more liquidation iteration.

The beauty of this design is that everything we covered before is still relevant, the new iteration is continuing on branch N just like before.

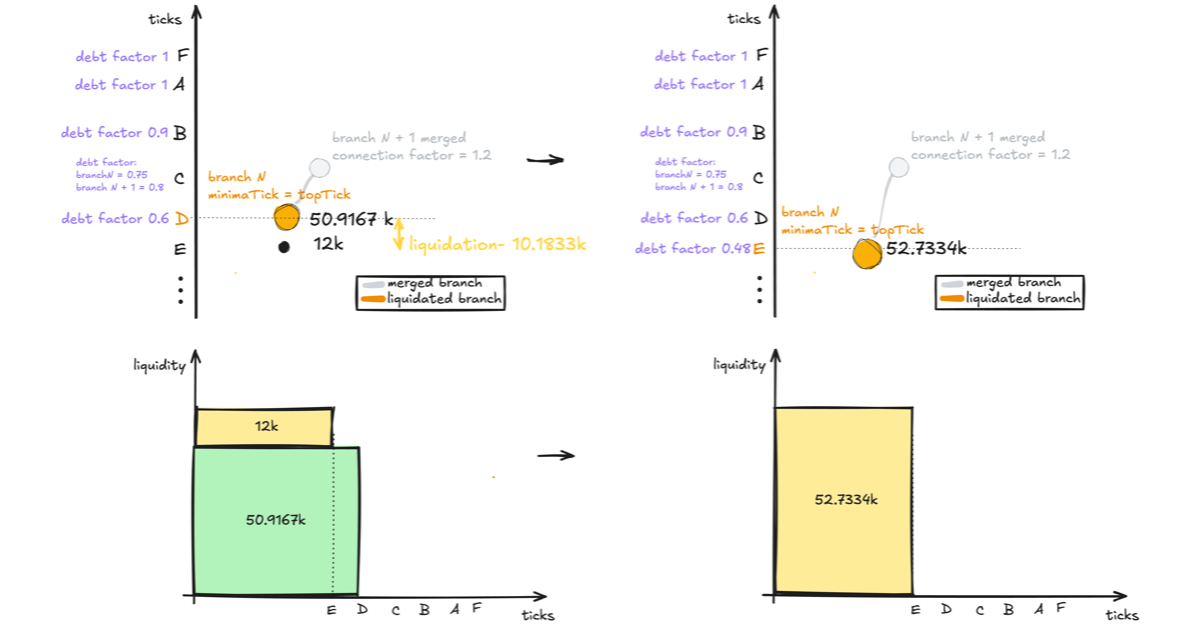

We ask what is the next tick with debt, which is Eve’s position in tick E now, that was never touched by liquidations.

Let’s say to reach E we need 10.1833k and the liquidator has that amount, so we calculate:

remainingDebt = 50.9167k - 10.1833k = 40.7334k
newFactor = oldFactor * remainingDebt / previousDebt
newFactor = 0.6 * 40.7334k / 50.9167k = 0.48

After this liquidation, the liquidator will still have some debt, so we finish this iteration, we touch Eve’s debt at tick E and move it to the liquidation branch, having around 52.7334k of debt sitting at tick E.

Now let’s finish this second liquidation process, and let’s say the liquidator has only 10.5467k left to liquidate, which is not enough to reach some other active ticks. For simplification, suppose there are some active debt positions below Eve’s position on branch N which we didn’t explicitly introduce.

So we again calculate:

remainingDebt = 52.7334k - 10.5467k = 42.1867k
newFactor = oldFactor * remainingDebt / previousDebt
newFactor = 0.48 * 42.1867k / 52.7334k = 0.384

and finish this liquidation at some point X that has partials (somewhere between E and some other active tick).

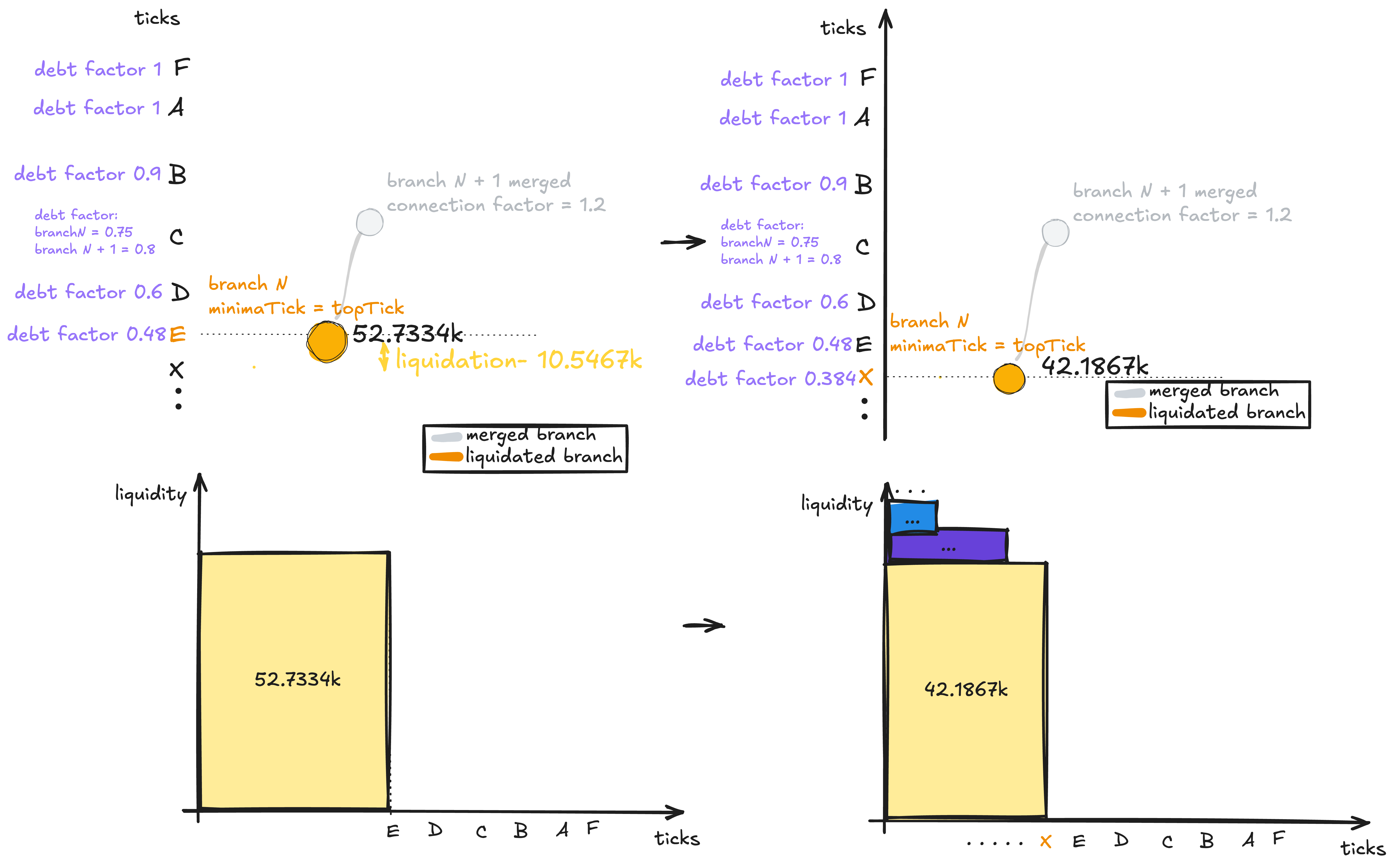

We end up with the final state:

If we want to retrieve back all positions:

Positions before:
-----------------
Alice:      15k debt
Bob:        10k debt
Charlie:    25k debt
Eve:        12k debt
Felix:      18k debt
Grace:      10k debt
Total debt: 90k debt

Positions after:
----------------
Alice:      15k * 0.384 / 1             = 5.760k
Bob:        10k * 0.384 / 0.9           = 4.267k
Charlie:    25k * 0.384 / 0.75          = 12.800k
Eve:        12k * 0.384 / 0.48          = 9.600k
Felix:      18k * 0.384 / (1 * 1.2)     = 5.760k
Grace:      10k * 0.384 / (0.8 * 1.2)   = 4.000k
                                        -------
Total debt:                             = 42.187k

Total liquidated:
-----------------
90k - 42.187k = 47.8133k

Uf, we covered a lot, so let’s cool down a bit and summarize what we did above.

So we created the initial branch with a few users
Price went down so we ran the first liquidation, moving to the final debt factor 0.6 and stopping at minima D
Then price went up, and we introduced a few new users on a new branch that was created on top of the previous branch N
Then again, price went down so we ran the second liquidation call, which merged both branches and finished at 0.384 debt factor on branch N

During these examples, we learned how liquidations work in general, what debt factors are used for, and what connection factors are and how they help us retrieve the state after a merge event.

Knowing this, reading the implementation on the next pages will be much more intuitive and simpler to reason about.

Until then, you can visualize the whole process from above:
